Lubtrack Multilub Systems

Description

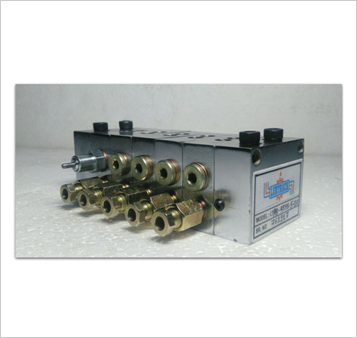

Progressive Distributor Blocks are one of the most effective, reliable and foolproof distributors which are used in for Grease lubrication. Progressive distributor blocks of LTPB-4555( For Secondary Line) / LTPB-6080( For Primary Line) series are meant for distribution of grease/oil delivered by a pump. From this progressive block we get lubricant in sequent one after another. Any one outlet is blocked then the progressive block will stop functioning with suitable monitoring devices, this blockage is sensed and suitable warning is given to avoid running the machine without proper lubrication.

Applications

Steel Plants, Paper Plants, Heavy-Duty Power Presses, Printing Machines, Textile Machines, Packaging Machines, Metal Working, Material Handling Equipments, Injection Moulding Machines, Mobile Equipments, Chassis Lubrication etc.

Our Models

S. No.	Model	Details
1.)	LTPB-4555-3-6	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 6, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
2.)	LTPB-4555-4-8	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 8, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
3.)	LTPB-4555-5-10	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 10, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
4.)	LTPB-4555-6-12	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 12, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
5.)	LTPB-4555-7-14	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 14, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
6.)	LTPB-4555-8 -16	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 16, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
7.)	LTPB-4555-9-18	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 18, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
8.)	LTPB-4555-10-20	Inlet Port Size – ¼” BSP, Outlet Port Size – 1/8” BSP, No. Of outlets – 20, Discharge – 0.15 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
9.)	LTPB-6080-3-6	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 6, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
10.)	LTPB-6080-4-8	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 8, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
11.)	LTPB-6080-5-10	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 10, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
12.)	LTPB-6080-6-12	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 12, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
13.)	LTPB-6080-7-14	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 14, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
14.)	LTPB-6080-8-16	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 16, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
15.)	LTPB-6080-9-18	Inlet Port Size – 3/8” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 18, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
16.)	LTPB-6080-10-20	Inlet Port Size – 3/4” BSP, Outlet Port Size – 1/4” BSP, No. Of outlets – 20, Discharge – 0.30 cc/Stroke with Indicator Pin. (Proximity Switch is optional).
