Description

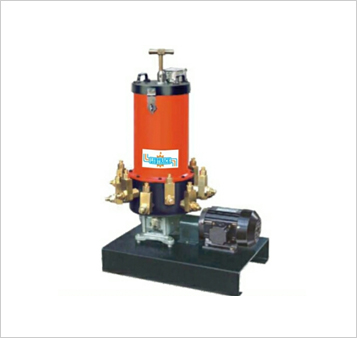

Multiline Radial Lubricator is a device meant to discharge metered amount of oil grease from different plunger pumps housed in a common body. Each plunger pump delivers oil grease at a high pressure to the lubrication point independently.


*This lubricator comprise of a single pumping station having a number of plunger pump placed radically and fitted on to the outer periphery of the housing. Each plunger unit is given a reciprocating motion with the help of a cam. The cam rotates with the help of an electric motor and speed reduction gear box. The dose per plunger pump / cycle is 0.05 to 0.25cc (adjustable) with maximum pressure 200 Kg/cm2. These all plunger pump are connected to the lubrication point directly / progressive block by mean of tube, rubber hose, and compression type fitting, clamping etc.

*Grease filling in the reservoir can be done manually as well as with the help of other pump. For pump ¼” BSP port is provided on reservoir.


Applications

Multiline radial lubricator is best suited for machine /plant where lubrication is required with high pressure continuously / intermittently for individual point. This lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, sponge iron plant etc.



Our Models
